Releaseable Type Covered & Naked Releaseable Stainless Steel Cable Ties

Time：2022-06-17 17:51:44

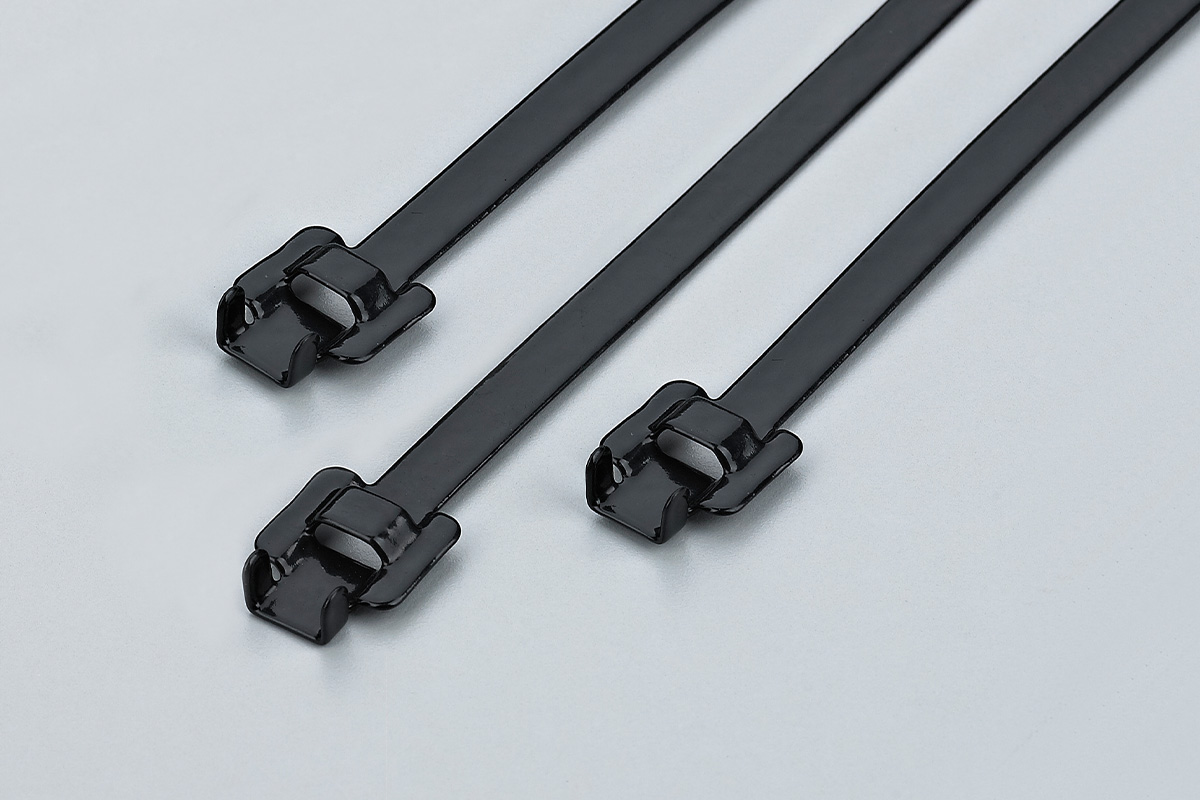

Plastic impregnated retractable stainless steel tie ◆ material: stainless steel 304 and 316, sprayed with epoxy resin; ◆ features: retractable tie, simple and accurate design, easy to use; ◆ applicable to: communication, electric power, shipbuilding industry; ◆ applicable temperature range: -40 ℃ - 85 ℃ White steel retractable stainless steel tie ◆ material: stainless steel 304 and 316. ◆ features: high strength retractable tie, simple and accurate design, easy to use, reusable; ◆ applicable to: communication, electric power, shipbuilding industry; ◆ applicable temperature range: -60 ℃ - 550 ℃

Item NO.	Length		Width	Thickness	Max.bundle Dia.(mm)	Tensile Strength
Item NO.	INCH	MM	(mm)	(mm)	Max.bundle Dia.(mm)	LBS	KGS
RTP-6.3×150	6″	150	6.3	0.4	33	180	80
RTP-6.3×190	8″	190	6.3	0.4	46	180	80
RTP-6.3×250	10″	250	6.3	0.4	65	180	80
RTP-6.3×300	11 5/8″	300	6.3	0.4	81	180	80
RTP-6.3×350	13 3/4″	350	6.3	0.4	97	180	80
RTP-9.5×400	15 3/4″	400	9.5	0.4	113	225	100
RTP-9.5×450	17 3/4″	450	9.5	0.4	129	225	100
RTP-9.5×490	19 11/16″	490	9.5	0.4	141	225	100
RTP-9.5×550	21 1/16″	550	9.5	0.4	161	225	100
RTP-9.5×600	23 5/8″	600	9.5	0.4	176	225	100
RTP-9.5×650	25 9/16″	650	9.5	0.4	192	225	100
RTP-9.5×700	27 1/2″	700	9.5	0.4	208	225	100




Item NO.	Length		Width	Thickness	Max.bundle Dia.(mm)	Tensile Strength
Item NO.	INCH	MM	(mm)	(mm)	Max.bundle Dia.(mm)	LBS	KGS
RTN-6.3×150	6″	150	6.3	0.4	33	180	80
RTN-6.3×190	8″	190	6.3	0.4	46	180	80
RTN-6.3×250	10″	250	6.3	0.4	65	180	80
RTN-6.3×300	11 5/8″	300	6.3	0.4	81	180	80
RTN-6.3×350	13 3/4″	350	6.3	0.4	97	180	80
RTN-9.5×400	15 3/4″	400	9.5	0.4	113	225	100
RTN-9.5×450	17 3/4″	450	9.5	0.4	129	225	100
RTN-9.5×490	19 11/16″	490	9.5	0.4	141	225	100
RTN-9.5×550	21 1/16″	550	9.5	0.4	161	225	100
RTN-9.5×600	23 5/8″	600	9.5	0.4	176	225	100
RTN-9.5×650	25 9/16″	650	9.5	0.4	192	225	100
RTN-9.5×700	27 1/2″	700	9.5	0.4	208	225	100
