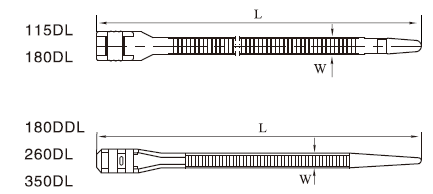

| Item NO. | Length | Width | Max.Bundle DIA.(mm) | Tensile Strength | ||
| Inch | mm | (mm) | PA12(KGS) | PA66(KGS) | ||
| YH-115DL | 5 1/8″ | 115 | 6 | 22 | 18 | 35 |
| YH-180DL | 7″ | 180 | 6 | 45 | 18 | 35 |
| YH-180DDL | 7″ | 180 | 9 | 45 | 25 | 40 |
| YH-260DL | 10 1/4″ | 260 | 9 | 66 | 40 | 50 |
| YH-350DL | 13 5/8″ | 350 | 9 | 90 | 40 | 50 |
Time：2022-06-17 17:27:36
◆ material: made of UL approved nylon 66 or nylon 12, with fire rating of UL94V-2, acid resistance, corrosion resistance, good insulation performance, not easy to aging and strong bearing capacity.
◆ applicable temperature range: -40 ℃ - 85 ℃
◆ installation temperature range: -20 ℃ - 85 ℃
◆ color: black, and UV resistant black.
◆ features: stronger pulling force, not easy to trip.
| Item NO. | Length | Width | Max.Bundle DIA.(mm) | Tensile Strength | ||
| Inch | mm | (mm) | PA12(KGS) | PA66(KGS) | ||
| YH-115DL | 5 1/8″ | 115 | 6 | 22 | 18 | 35 |
| YH-180DL | 7″ | 180 | 6 | 45 | 18 | 35 |
| YH-180DDL | 7″ | 180 | 9 | 45 | 25 | 40 |
| YH-260DL | 10 1/4″ | 260 | 9 | 66 | 40 | 50 |
| YH-350DL | 13 5/8″ | 350 | 9 | 90 | 40 | 50 |
