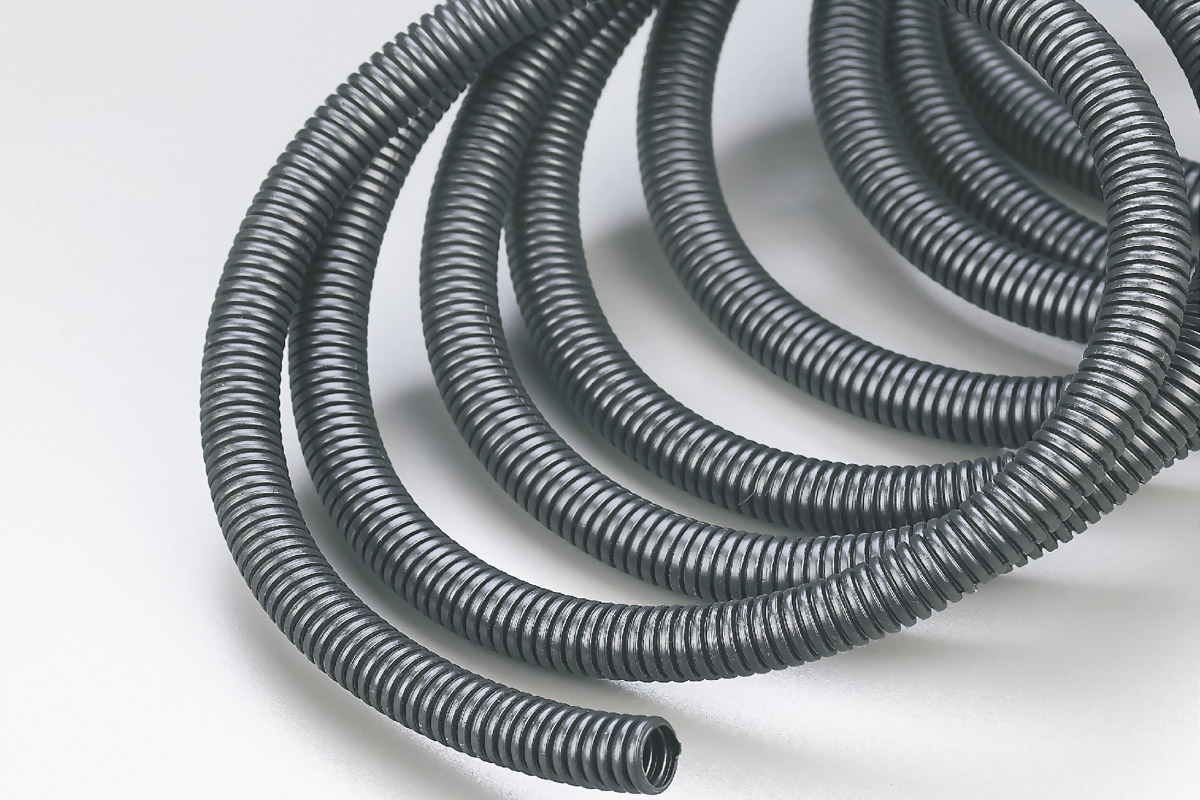

Corrugated pipe

Time：2022-06-17 17:12:57

◆ material: nylon (PA6) / polyethylene (PE) / polypropylene (PP) flame retardant grade Hb, refer to UL94.
◆ ambient temperature: nylon (PA6) -40 ℃ ~+115 ℃ +150 ℃, polyethylene (PE) -50 ℃ ~+80 ℃ +100 ℃
Polypropylene (PP) -40 ℃ ~+110 ℃ +130 ℃
◆ supply color: black and gray, other colors can be inquired.
◆ product characteristics: prevent gray and liquid; Oil, acid and solvent resistance; Halogen, silicon and cadmium free; Soft and tenacious, excellent gloss on the surface, friction resistance; Anti twist, high mechanical strength; Black UV resistant.
◆ application field: insulation, heat insulation and isolation protection for industrial electrical devices.

PA nylon bellows

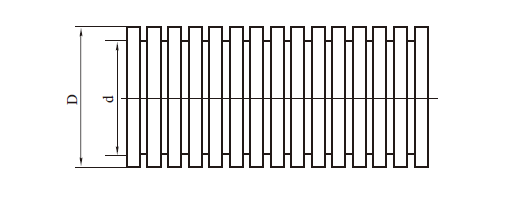

Thread	int.×ext.(mm)	Dimensions mm±10%		Lengths in rings m/roll
Thread	int.×ext.(mm)	Stat	Dyn	Lengths in rings m/roll
AD10.0	6.5×10.0	14	35	100
AD11.6	8.00×11.6	17	40	100
AD13.0	9.50×13.0	20	45	100
AD15.8	12.0×15.8	27	55	100
AD18.5	14.3×18.5	35	65	100
AD21.2	17.0×21.2	40	75	100
AD25.5	21.0×25.5	43	85.5	100
AD28.5	23.0×28.5	47	100	50
AD34.5	29.0×34.5	58	120	50
AD42.5	36.0×42.5	69	150	50
AD54.5	48.0×54.5	83	190	25


PE PE corrugated pipe

Thread	int.×ext.(mm)	Dimensions mm±10%		Lengths in rings m/roll
Thread	int.×ext.(mm)	Stat	Dyn	Lengths in rings m/roll
AD10.0	6.5×10.0	13	33	100
AD11.6	8.00×11.6	15	37	100
AD13.0	9.50×13.0	18	41	100
AD15.8	12.0×15.8	22	50	100
AD18.5	14.3×18.5	33	61	100
AD21.2	17.0×21.2	38	72	100
AD25.5	21.0×25.5	40	80	100
AD28.5	23.0×28.5	44	92	50
AD34.5	29.0×34.5	53	113	50
AD42.5	36.0×42.5	61	140	50
AD54.5	48.0×54.5	78	180	25



PP polypropylene bellows

Thread	int.×ext.(mm)	Dimensions mm±10%		Lengths in rings m/roll
Thread	int.×ext.(mm)	Stat	Dyn	Lengths in rings m/roll
AD10.0	6.5×10.0	16	37	100
AD11.6	8.00×11.6	18	43	100
AD13.0	9.50×13.0	21	48	100
AD15.8	12.0×15.8	26	56	100
AD18.5	14.3×18.5	37	70	100
AD21.2	17.0×21.2	44	79	100
AD25.5	21.0×25.5	49	88	100
AD28.5	23.0×28.5	52	104	50
AD34.5	29.0×34.5	58	123	50
AD42.5	36.0×42.5	68	152	50
AD54.5	48.0×54.5	84	193	25
