Circle Cable Clips-Yueqing Yuhua Mould Co., Ltd.

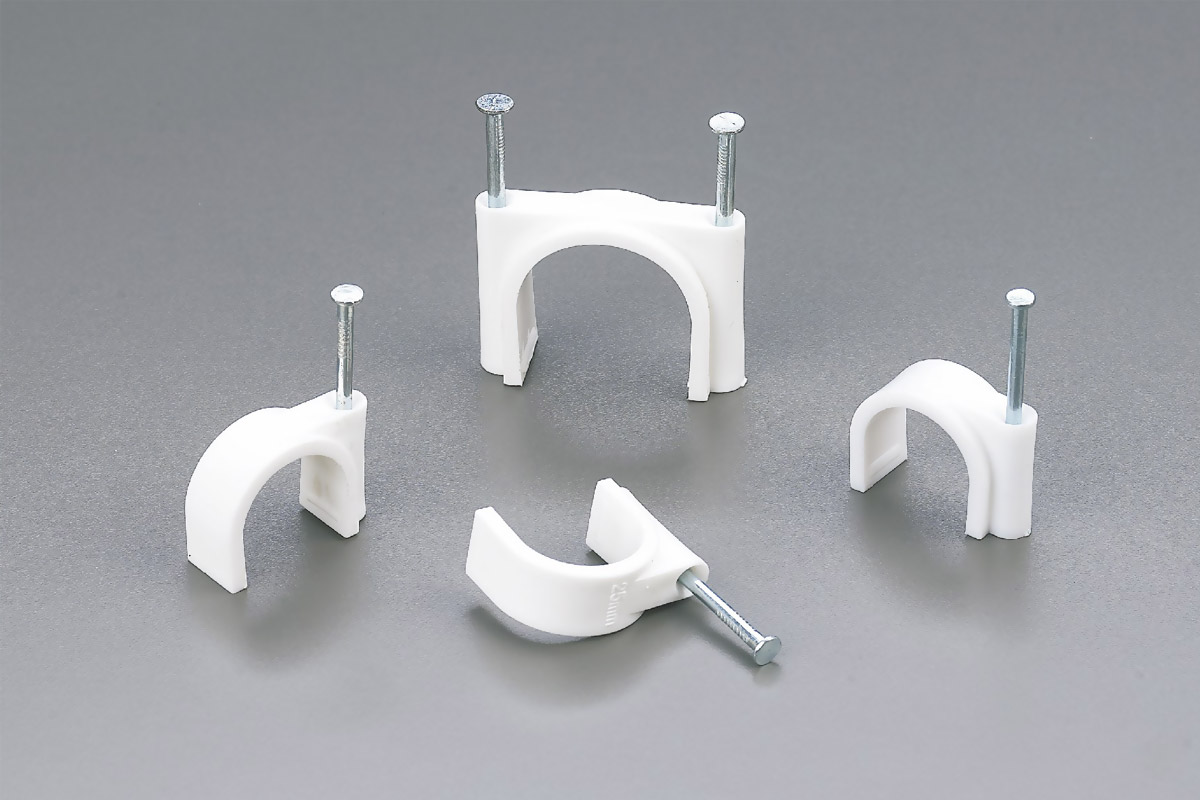

Circle Cable Clips

Time：2022-06-17 17:42:58

◆ this series of line cards are made of PE (white and gray) material by injection molding, with high elasticity, impact resistance and no rupture.

◆ this series of line cards are of pin type. Steel nails are directly attached to the line cards, which can greatly save man hours and reduce construction costs.

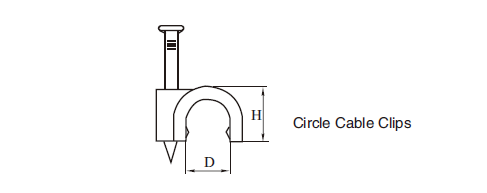

Item NO.	Height (mm)	Circular diameter(mm)	Nail(mm)	Color
YH-3MM	3.6	3	1.4×15	WHITE GREY BLACK BROWN DARK GREY
YH-3.5MM	4.2	3.5	1.4×15
YH-4MM	5.3	4	1.7×14
YH-5MM	6	5	1.7×14
YH-6MM	8	6	1.8×17
YH-7MM	8.7	7	1.8×17
YH-8MM	9.5	8	2.0×19
YH-9MM	11	9	2.0×20
YH-10MM	12	10	2.1×23
YH-12MM	13.5	12	2.1×25
YH-14MM	16.5	14	2.3×30
YH-16MM	18	16	2.3×32
YH-17MM	20	17	2.6×38
YH-18MM	20.5	18	2.6×38
YH-20MM	22.5	20	2.6×40
YH-22MM	23.5	22	2.9×42
YH-25MM	26.5	25	2.9×50
YH-30MM	32.5	30	3.3×55
(Double Nail)	32.5	30	3.3×55
YH-32MM	34.5	32	3.3×55
(Double Nail)	34.5	32	3.3×55
YH-35MM	38	35	3.3×60
(Double Nail)	38	35	3.3×60
YH-40MM	43.8	40	3.3×65
(Double Nail)	43.8	40	3.3×65
YH-50MM	54.5	50	4.0×78
(Double Nail)	54.5	50	4.0×78
